Nimbus: Raising the Bar for Indian & Global Precision Manufacturing

India entered the high-tolerance race late—but catching up was never the goal. Nimbus proves that local engineering can set the pace for global suppliers. When its spindle closes a loop inside ±4 µm, it isn’t chasing a benchmark; it’s creating one—and inviting the next generation of engineers to tackle problems textbooks barely touch.

Nimbus is Ethereal Machines’ answer to a simple challenge:

Build a 5-axis platform in India that can mill aluminium, steel, titanium, Inconel, copper parts and other exotic materials to the finest tolerances. The result is a closed-loop, lights-out production cell that reports the same numbers on a Quality Control (QC) chart that it prints on its brochure.

Key Specs → Real-World Consequences

Spec	What It Means on Your Part

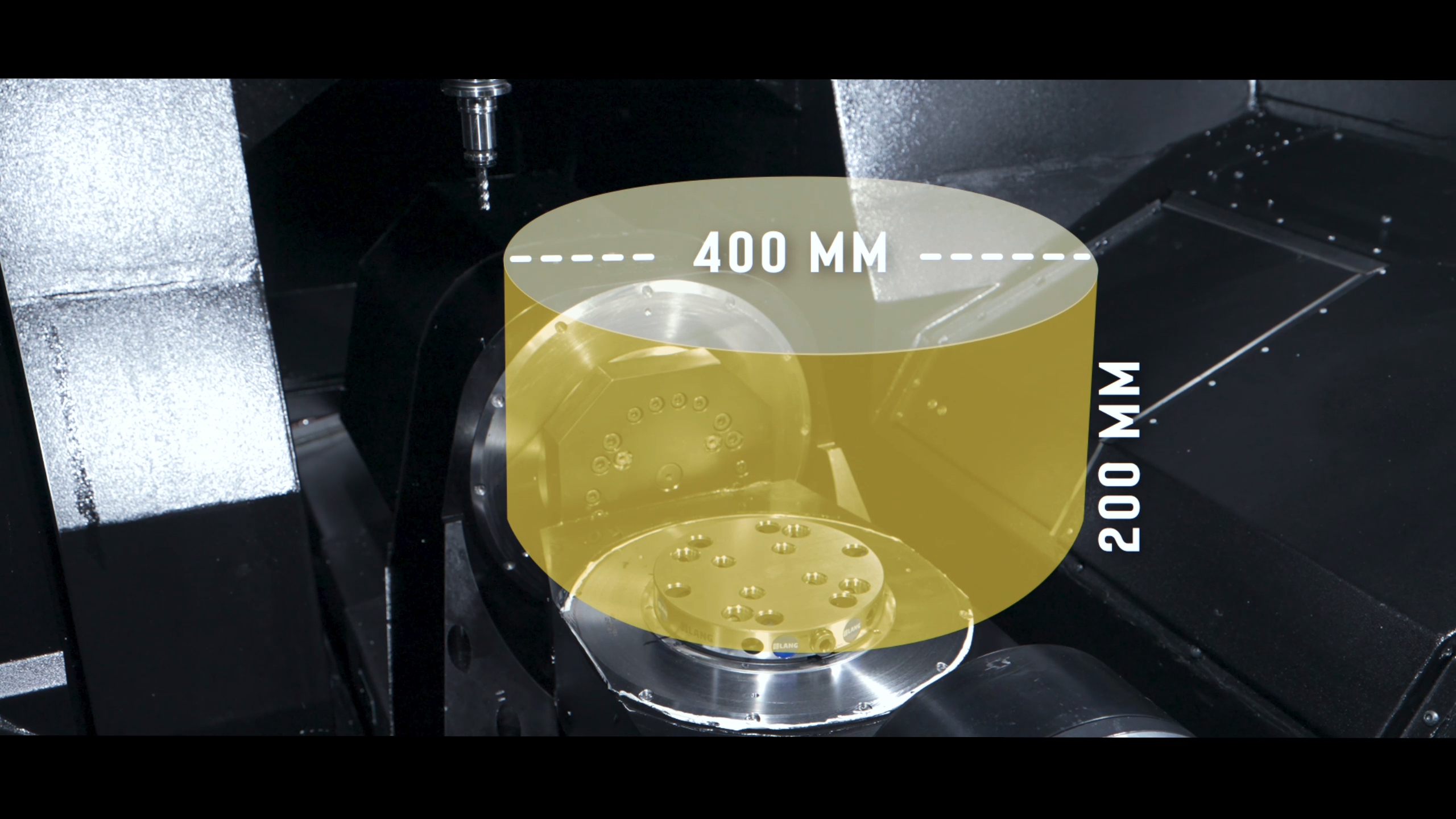

Ø 400 mm × 200 mm envelope	One-and-done setup for battery housings & impellers

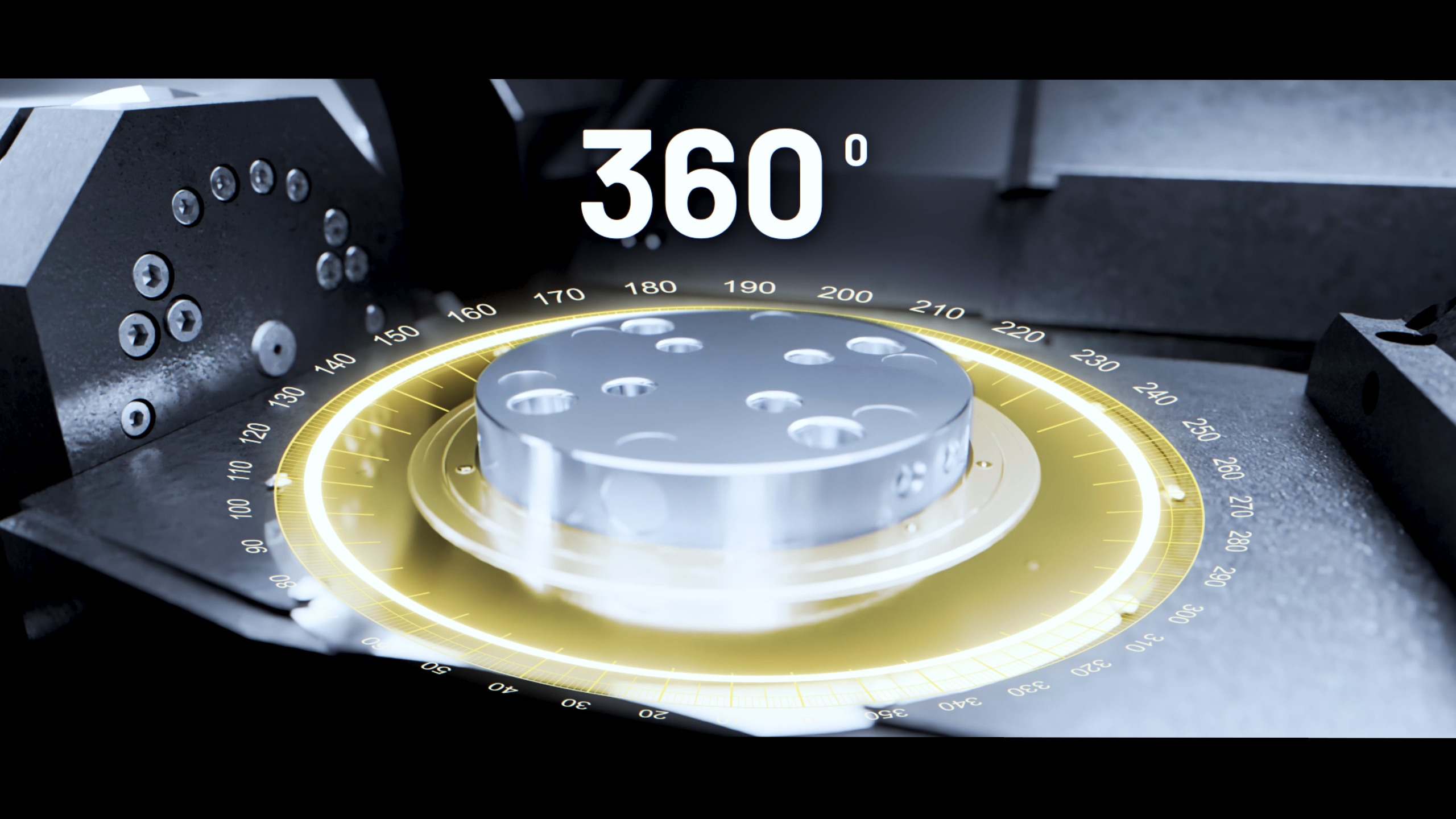

C-axis 360 °	Unlimited indexing—no fixture gymnastics

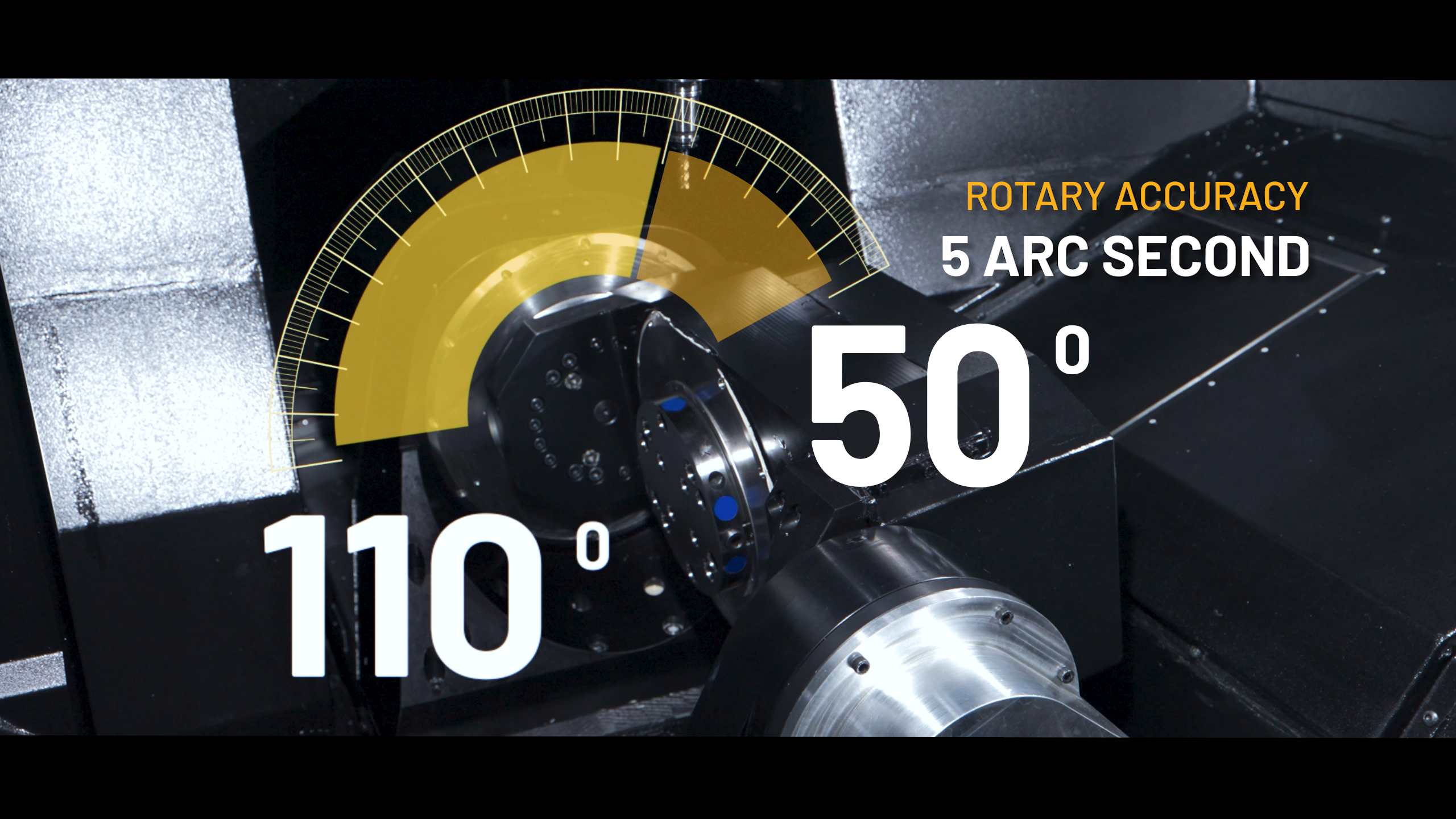

B-axis −50 ° to +110 °	Compound angles without re-indicating datums

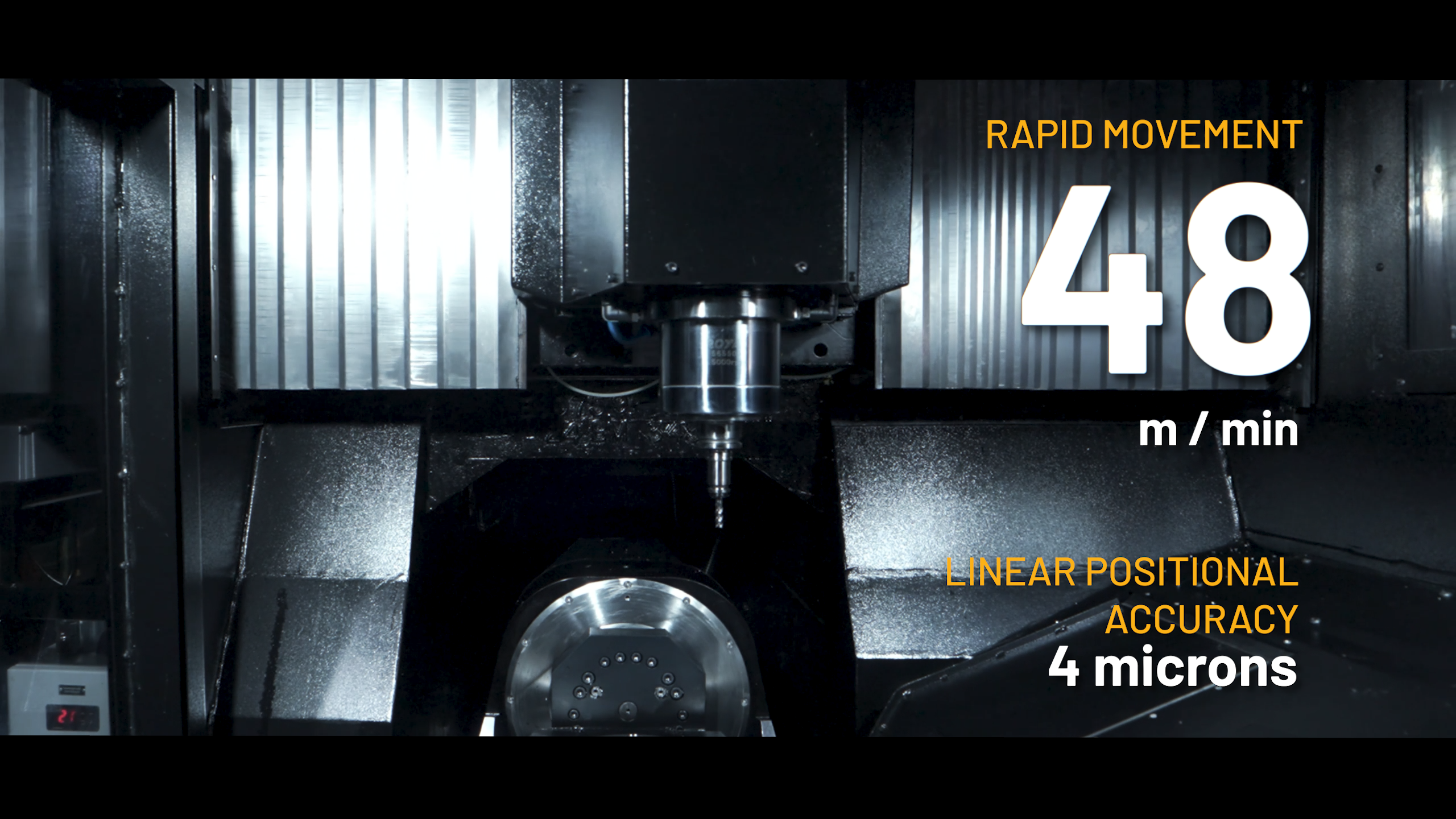

48 m·min⁻¹ rapid traverse · 30 m·min⁻¹ feed rate	Minutes shaved off every roughing cycle
4 microns linear positioning	Any tight positions can be maintained within 4 microns

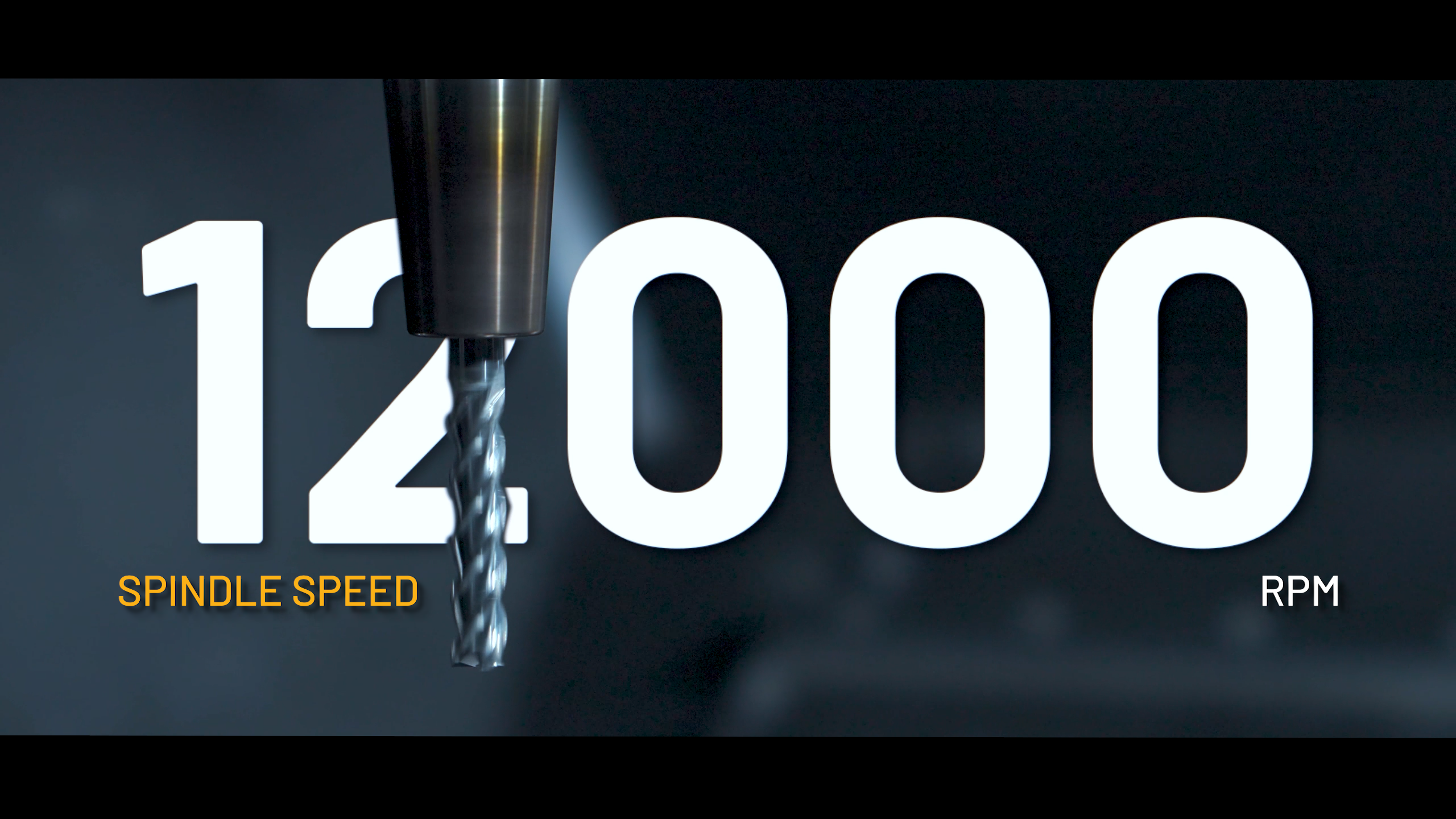

12,000 RPM spindle	Torque for steel & inconel, surface speed for copper and aluminium

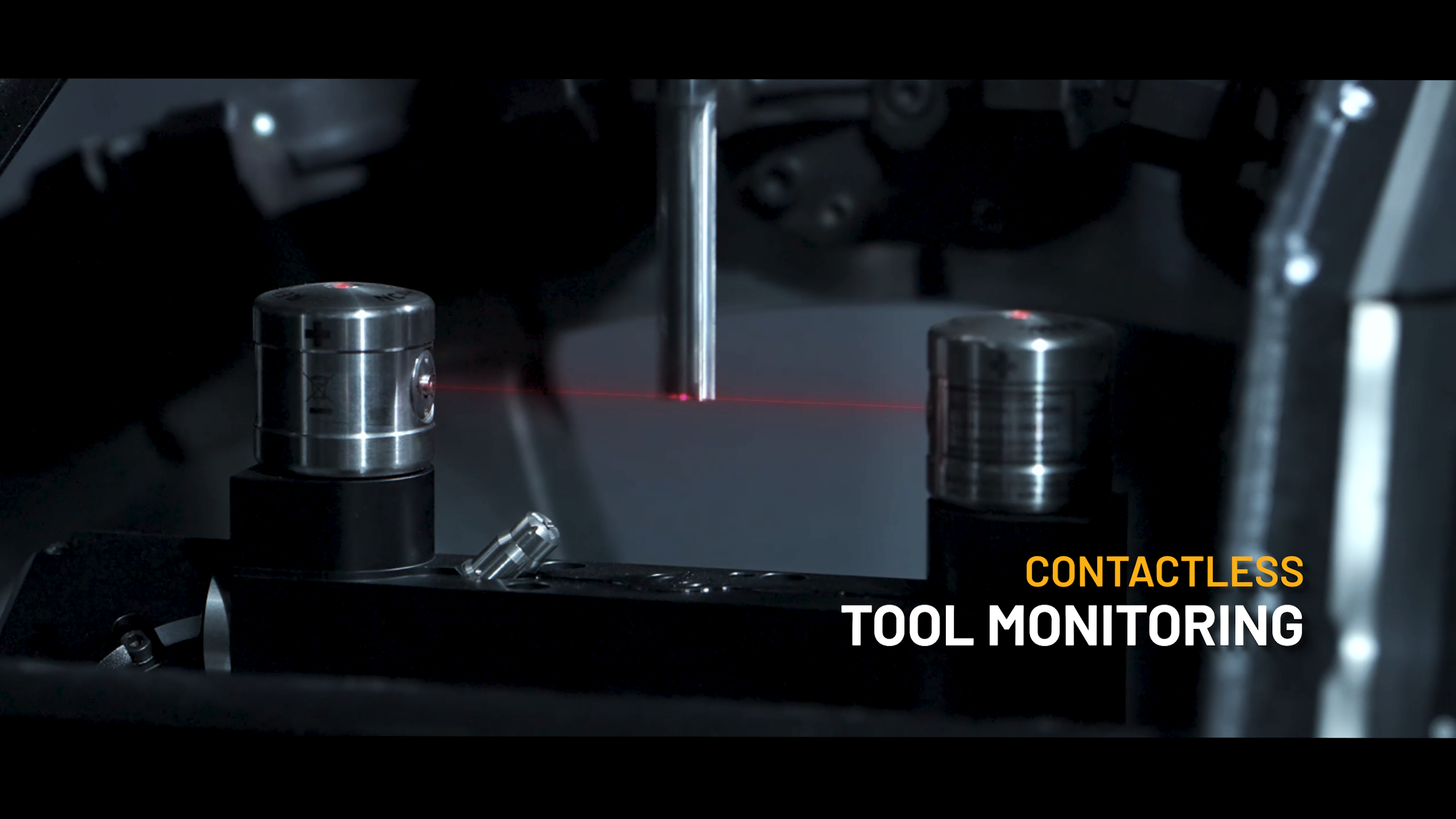

Laser Tool Setter	Cutter length, diameter, wear and runout verified for every tool change, unattended shifts, zero scrap surprises
Qualified metals: up to 65HRC	Prototype-to-production versatility in one cell

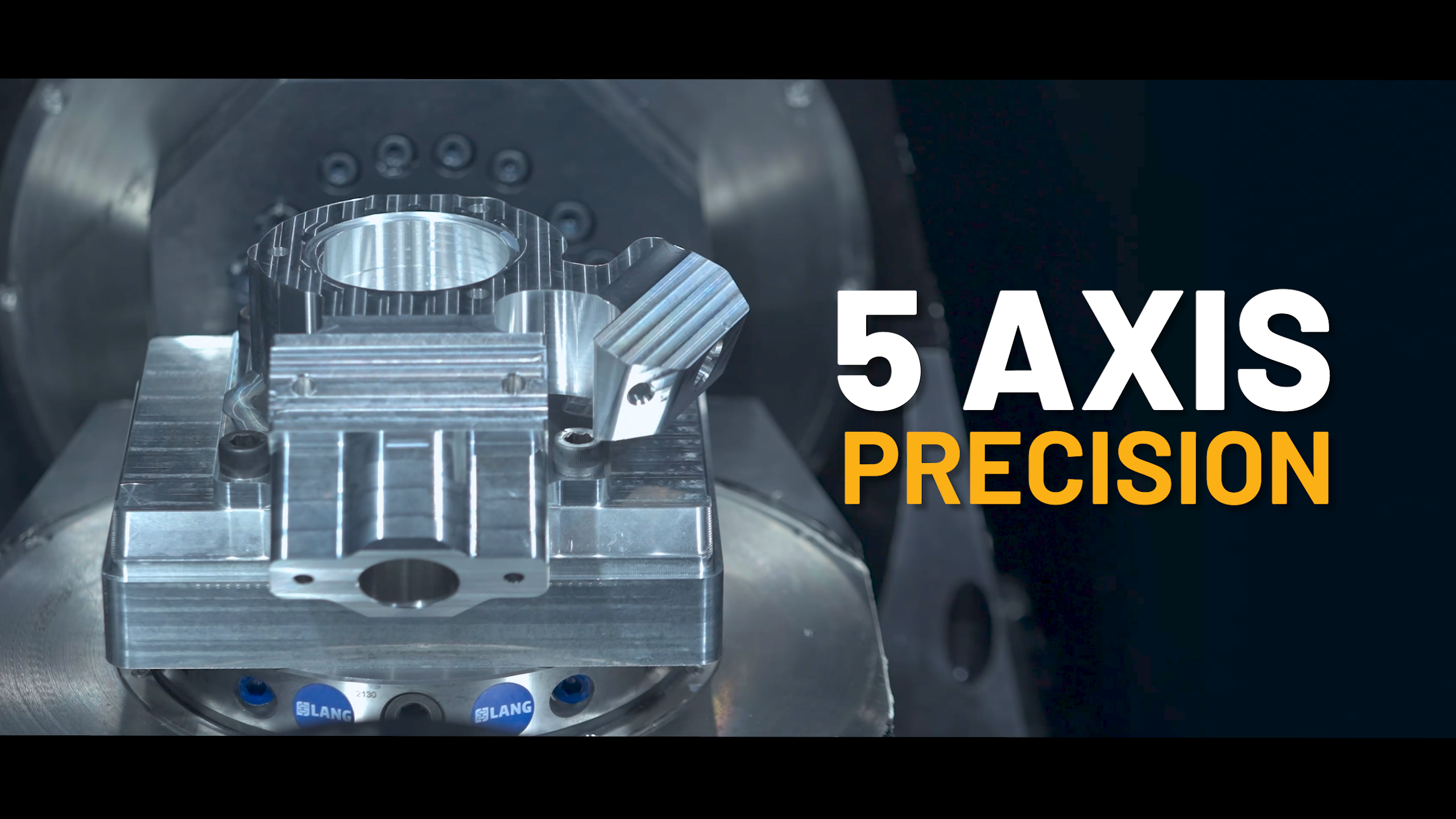

Positional 5-axis (4 + 1 / 3 + 2)	Kinematics tuned for stability, not showy simultaneous moves

Accuracy note: 4-micron linear positioning and 5 arc-second rotary accuracy are achieved with on-axis feedback— Linear scales on X, Y, Z and dedicated rotary encoders on both B and C axes—so the numbers on paper match the numbers on your QC report.

What Nimbus Enables

Shorter lead times, fewer surprises. By cutting the full material range in one cell and eliminating fixture flips, Nimbus trims days from typical prototype cycles and locks process capability early—so scaling to production doesn’t mean rewriting the program.

Transparent accountability. Every critical pass is logged and traceable, giving sourcing teams a single source of truth instead of a paper trail of subcontractors.

Headroom for tomorrow’s alloys. Nimbus is production-qualified on pure-copper EV rotors and the next wave of nickel-based super-alloys, so when those materials appear on next year’s drawings, the processes are already proven.

If You Source Critical Parts

Titanium, Inconel, multi-axis features—Nimbus is already cutting them next door to the team that designed its motion stack. Let’s talk geometry.

Start an RFQ

If You Want Harder Problems

Engineering challenges that have lingered for decades need cross-disciplinary solutions. If coordinating mechanics, electronics, and software to crack those problems excites you, join the crew inventing the hardware to do it.

See Open Roles

Made With Intent. Held to Standard.

Nimbus isn’t for sale. It’s our assurance of Indian-engineered precision— and for anyone still asking whether world-class accuracy can be achieved under one roof here, the machine is already proving it.
